Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LIGHTIN
  • Model Number: p8
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 8mm
  • Screen Dimension: 256mm*128mm
  • Modules Max Power: 25W
  • Interface Way: Hub75b
  • Brightniess: 7500mcd/m2
  • Weight: 0.6kg
  • Thickness: 2.8cm
  • Best View Distance: 8m-80m
  • Pixel Density: 15625
  • Cabinet size: 768mm*768mm
  • Scan mode: 1/4Scan
  • Average Power Consumption: 600W / m2

Packaging & Delivery

Packaging Details Cabinte Size :768mm*768mm
Packing :Wooden Case/Flight Case
Delivery Time Shipped in 10 days after payment

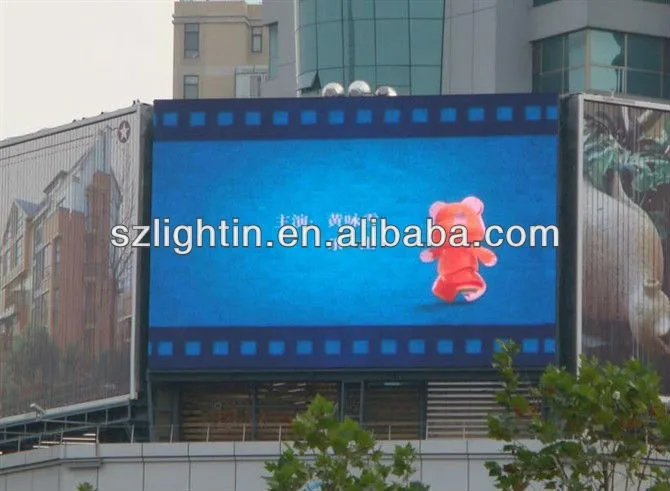

Video Display Function Outdoor Usage media facadeP8 outdoor led billboard

Product Description



Video Display Function Outdoor Usage media facadeP8 outdoor led billboard
 Feature


1. Full color outdoor led display has high brightness and adjustable contrast. This model has a good lighting accordance and has no mosaic.

2. Outdoor LED display has larging view angle, it also has a better viewing effect for text, graphic and video ects, any LED in each pixel can be respectively repaired.

3. Computer VGA outdoor display with real-time synchronization output, and applies to all types of Internet connections with the media to transmit real-time information.

4. Led screens have brightness strong, static driving scan mode, larger power-driven.

5. In the visual distance of the full color LED sign surface direct sunlight, display clearly visible.

6 is a professional LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising led display, outdoor led display, indoor led display manufacturer.

Video Display Function Outdoor Usage media facadeP8 outdoor led billboard
 parameter :

ItemsParameter
Product ModelP8 Full Color Led Module
Module size256mm*128mm
Pixel pitch8mm
Pixel density 15625dots/m2
Pixel configurationRGB 3 in 1
Module resolution32dots(W)*16dots(H)
Module maximum power consumption25W
Module Thickness2.8CM
Module Weight0.6kg
Driving methodConstant Current Driving
Scanning method1/4 scan
InterfaceHUB75B
Brightness ≥7500cd/m2
The specifications of cabinets
Cabinet size768mm x 768mm
Module quantity18pcs
Power supply5V/40A 5V/60A
Cabinet resolution 96*96dots
Optimal viewing distance8M ~ 80M
Optimal viewing angle160°(W) 120°(H)
RHWorking temperature(Work :-20 °C~ +50 °C )
System operating humility10%-95%
The specifications of power supplier
Operating VoltageAC220V±10%
Average power consumption300W/H
Maximum power consumption≤600W/square meter
Electric current≤20mA(single LED)
The specifications of control card
Control PanelsPentium4 or above
Operating systemWIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters
Driving deviceConstant Current Driving
Refresh rate≥600HZ
Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768/1280*900





Packaging & Shipping





Our Services



  Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 5-12 working days

Our service

1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.



Company Information










FAQ



1. What is LED?


LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.


2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?


Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.


3. What are LED Type, Module size and Module resolution?


LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.


4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.


5. What is viewing angle?


Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
